[RESOLVED] Exchange 2016 IIS not usable after installation from CU5

Bastian
By Bastian
0
7913

Once you installed Exchange 2016 Cumulative Update 5 you might find out that the server is half broken now:

– Powershell isn´t working

– OWA & ECP isn´t working

– Users see connection issues

Additional  you see the following errors when you start a powershell on the affected Server:

New-PSSession : [exch01.int.contoso.com] Connecting to remote server exch01.int.contoso.com failed with the following error message : The WinRM client cannot process the
request. It cannot determine the content type of the HTTP response from the destination computer. The content type is absent or invalid. For more information, see the
about_Remote_Troubleshooting Help topic.
At line:1 char:1
+ New-PSSession -ConnectionURI "$connectionUri" -ConfigurationName Microsoft.Excha ...
+ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    + CategoryInfo          : OpenError: (System.Manageme....RemoteRunspace:RemoteRunspace) [New-PSSession], PSRemotingTransportException
    + FullyQualifiedErrorId : -2144108297,PSSessionOpenFailed

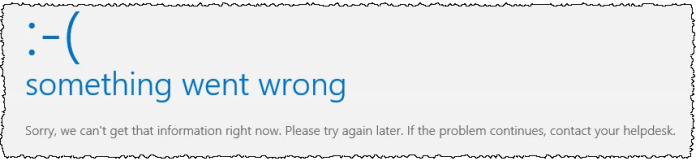

 When you try to open any Exchange Website (e.g ECP, OWA, …) on localhost:

Server Error in '/ecp' Application.

Could not load type 'Microsoft.Exchange.VariantConfiguration.MachineSettingsContext' from assembly 'Microsoft.Exchange.VariantConfiguration.Core, Version=15.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35'.
  Description: An unhandled exception occurred during the execution of the current web request. Please review the stack trace for more information about the error and where it originated in the code.

 Exception Details: System.TypeLoadException: Could not load type 'Microsoft.Exchange.VariantConfiguration.MachineSettingsContext' from assembly 'Microsoft.Exchange.VariantConfiguration.Core, Version=15.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35'.

Source Error:

 An unhandled exception was generated during the execution of the current web request. Information regarding the origin and location of the exception can be identified using the exception stack trace below.

Stack Trace:

[TypeLoadException: Could not load type 'Microsoft.Exchange.VariantConfiguration.MachineSettingsContext' from assembly 'Microsoft.Exchange.VariantConfiguration.Core, Version=15.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35'.]
   Microsoft.Exchange.HttpProxy.HttpProxySettings..cctor() +0

[TypeInitializationException: The type initializer for 'Microsoft.Exchange.HttpProxy.HttpProxySettings' threw an exception.]
   Microsoft.Exchange.HttpProxy.ProxyApplication.ConfigureServicePointManager() +25
   Microsoft.Exchange.HttpProxy.ProxyApplication.<Application_Start>b__0() +101
   Microsoft.Exchange.Common.IL.ILUtil.DoTryFilterCatch(Action tryDelegate, Func`2 filterDelegate, Action`1 catchDelegate) +33
   Microsoft.Exchange.HttpProxy.ProxyApplication.Application_Start(Object sender, EventArgs e) +268

[HttpException (0x80004005): The type initializer for 'Microsoft.Exchange.HttpProxy.HttpProxySettings' threw an exception.]
   System.Web.HttpApplicationFactory.EnsureAppStartCalledForIntegratedMode(HttpContext context, HttpApplication app) +540
   System.Web.HttpApplication.RegisterEventSubscriptionsWithIIS(IntPtr appContext, HttpContext context, MethodInfo[] handlers) +186
   System.Web.HttpApplication.InitSpecial(HttpApplicationState state, MethodInfo[] handlers, IntPtr appContext, HttpContext context) +172
   System.Web.HttpApplicationFactory.GetSpecialApplicationInstance(IntPtr appContext, HttpContext context) +402
   System.Web.Hosting.PipelineRuntime.InitializeApplication(IntPtr appContext) +343

[HttpException (0x80004005): The type initializer for 'Microsoft.Exchange.HttpProxy.HttpProxySettings' threw an exception.]
   System.Web.HttpRuntime.FirstRequestInit(HttpContext context) +539
   System.Web.HttpRuntime.EnsureFirstRequestInit(HttpContext context) +125
   System.Web.HttpRuntime.ProcessRequestNotificationPrivate(IIS7WorkerRequest wr, HttpContext context) +731

 You see also multiple errors in the eventlog which outlined as below:

Log Name:      Application
Source:        MSExchange Front End HTTP Proxy
Date:          2017-05-03 12:09:43
Event ID:      1003
Task Category: Core
Level:         Error
Keywords:      Classic
User:          N/A
Computer:      exch01.int.contoso.com
Description:
[Ews] An internal server error occurred. The unhandled exception was: System.TypeInitializationException: The type initializer for 'Microsoft.Exchange.HttpProxy.HttpProxySettings' threw an exception. ---> System.TypeLoadException: Could not load type 'Microsoft.Exchange.VariantConfiguration.MachineSettingsContext' from assembly 'Microsoft.Exchange.VariantConfiguration.Core, Version=15.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35'.
   at Microsoft.Exchange.HttpProxy.HttpProxySettings..cctor()
   --- End of inner exception stack trace ---
   at Microsoft.Exchange.HttpProxy.ProxyApplication.ConfigureServicePointManager()
   at Microsoft.Exchange.HttpProxy.ProxyApplication.<Application_Start>b__0()
   at Microsoft.Exchange.Common.IL.ILUtil.DoTryFilterCatch(Action tryDelegate, Func`2 filterDelegate, Action`1 catchDelegate)
Event Xml:
<Event xmlns="http://schemas.microsoft.com/win/2004/08/events/event">
  <System>
    <Provider Name="MSExchange Front End HTTP Proxy" />
    <EventID Qualifiers="49152">1003</EventID>
    <Level>2</Level>
    <Task>1</Task>
    <Keywords>0x80000000000000</Keywords>
    <TimeCreated SystemTime="2017-05-03T10:09:43.000000000Z" />
    <EventRecordID>11496805</EventRecordID>
    <Channel>Application</Channel>
    <Computer>exch01.int.contoso.com</Computer>
    <Security />
  </System>
  <EventData>
    <Data>Ews</Data>
    <Data>System.TypeInitializationException: The type initializer for 'Microsoft.Exchange.HttpProxy.HttpProxySettings' threw an exception. ---&gt; System.TypeLoadException: Could not load type 'Microsoft.Exchange.VariantConfiguration.MachineSettingsContext' from assembly 'Microsoft.Exchange.VariantConfiguration.Core, Version=15.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35'.
   at Microsoft.Exchange.HttpProxy.HttpProxySettings..cctor()
   --- End of inner exception stack trace ---
   at Microsoft.Exchange.HttpProxy.ProxyApplication.ConfigureServicePointManager()
   at Microsoft.Exchange.HttpProxy.ProxyApplication.&lt;Application_Start&gt;b__0()
   at Microsoft.Exchange.Common.IL.ILUtil.DoTryFilterCatch(Action tryDelegate, Func`2 filterDelegate, Action`1 catchDelegate)</Data>
  </EventData>
</Event>

Log Name:      Application
Source:        ASP.NET 4.0.30319.0
Date:          2017-05-03 12:09:43
Event ID:      1309
Task Category: Web Event
Level:         Warning
Keywords:      Classic
User:          N/A
Computer:      exch01.int.contoso.com
Description:
Event code: 3005
Event message: An unhandled exception has occurred.
Event time: 2017-05-03 12:09:43
Event time (UTC): 2017-05-03 10:09:43
Event ID: 4bd0116e1265459da6aca71545a8690e
Event sequence: 2
Event occurrence: 1
Event detail code: 0

Application information:
    Application domain: /LM/W3SVC/1/ROOT/EWS-3-131382797788920399
    Trust level: Full
    Application Virtual Path: /EWS
    Application Path: C:\Program Files\Microsoft\Exchange Server\V15\FrontEnd\HttpProxy\EWS\
    Machine name: DEFFMEXCH01

Process information:
    Process ID: 304
    Process name: w3wp.exe
    Account name: NT AUTHORITY\SYSTEM

Exception information:
    Exception type: HttpException
    Exception message: The type initializer for 'Microsoft.Exchange.HttpProxy.HttpProxySettings' threw an exception.
   at System.Web.HttpApplicationFactory.EnsureAppStartCalledForIntegratedMode(HttpContext context, HttpApplication app)
   at System.Web.HttpApplication.RegisterEventSubscriptionsWithIIS(IntPtr appContext, HttpContext context, MethodInfo[] handlers)
   at System.Web.HttpApplication.InitSpecial(HttpApplicationState state, MethodInfo[] handlers, IntPtr appContext, HttpContext context)
   at System.Web.HttpApplicationFactory.GetSpecialApplicationInstance(IntPtr appContext, HttpContext context)
   at System.Web.Hosting.PipelineRuntime.InitializeApplication(IntPtr appContext)

The type initializer for 'Microsoft.Exchange.HttpProxy.HttpProxySettings' threw an exception.
   at Microsoft.Exchange.HttpProxy.ProxyApplication.ConfigureServicePointManager()
   at Microsoft.Exchange.HttpProxy.ProxyApplication.<Application_Start>b__0()
   at Microsoft.Exchange.Common.IL.ILUtil.DoTryFilterCatch(Action tryDelegate, Func`2 filterDelegate, Action`1 catchDelegate)
   at Microsoft.Exchange.HttpProxy.ProxyApplication.Application_Start(Object sender, EventArgs e)

Could not load type 'Microsoft.Exchange.VariantConfiguration.MachineSettingsContext' from assembly 'Microsoft.Exchange.VariantConfiguration.Core, Version=15.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35'.
   at Microsoft.Exchange.HttpProxy.HttpProxySettings..cctor()



Request information:
    Request URL: https://localhost:443/ews/
    Request path: /ews/
    User host address: ::1
    User:
    Is authenticated: False
    Authentication Type:
    Thread account name: NT AUTHORITY\SYSTEM

Thread information:
    Thread ID: 59
    Thread account name: NT AUTHORITY\SYSTEM
    Is impersonating: False
    Stack trace:    at System.Web.HttpApplicationFactory.EnsureAppStartCalledForIntegratedMode(HttpContext context, HttpApplication app)
   at System.Web.HttpApplication.RegisterEventSubscriptionsWithIIS(IntPtr appContext, HttpContext context, MethodInfo[] handlers)
   at System.Web.HttpApplication.InitSpecial(HttpApplicationState state, MethodInfo[] handlers, IntPtr appContext, HttpContext context)
   at System.Web.HttpApplicationFactory.GetSpecialApplicationInstance(IntPtr appContext, HttpContext context)
   at System.Web.Hosting.PipelineRuntime.InitializeApplication(IntPtr appContext)


Custom event details:

Event Xml:
<Event xmlns="http://schemas.microsoft.com/win/2004/08/events/event">
  <System>
    <Provider Name="ASP.NET 4.0.30319.0" />
    <EventID Qualifiers="32768">1309</EventID>
    <Level>3</Level>
    <Task>3</Task>
    <Keywords>0x80000000000000</Keywords>
    <TimeCreated SystemTime="2017-05-03T10:09:43.000000000Z" />
    <EventRecordID>11496807</EventRecordID>
    <Channel>Application</Channel>
    <Computer>exch01.int.contoso.com</Computer>
    <Security />
  </System>
  <EventData>
    <Data>3005</Data>
    <Data>An unhandled exception has occurred.</Data>
    <Data>2017-05-03 12:09:43</Data>
    <Data>2017-05-03 10:09:43</Data>
    <Data>4bd0116e1265459da6aca71545a8690e</Data>
    <Data>2</Data>
    <Data>1</Data>
    <Data>0</Data>
    <Data>/LM/W3SVC/1/ROOT/EWS-3-131382797788920399</Data>
    <Data>Full</Data>
    <Data>/EWS</Data>
    <Data>C:\Program Files\Microsoft\Exchange Server\V15\FrontEnd\HttpProxy\EWS\</Data>
    <Data>DEFFMEXCH01</Data>
    <Data>
    </Data>
    <Data>304</Data>
    <Data>w3wp.exe</Data>
    <Data>NT AUTHORITY\SYSTEM</Data>
    <Data>HttpException</Data>
    <Data>The type initializer for 'Microsoft.Exchange.HttpProxy.HttpProxySettings' threw an exception.
   at System.Web.HttpApplicationFactory.EnsureAppStartCalledForIntegratedMode(HttpContext context, HttpApplication app)
   at System.Web.HttpApplication.RegisterEventSubscriptionsWithIIS(IntPtr appContext, HttpContext context, MethodInfo[] handlers)
   at System.Web.HttpApplication.InitSpecial(HttpApplicationState state, MethodInfo[] handlers, IntPtr appContext, HttpContext context)
   at System.Web.HttpApplicationFactory.GetSpecialApplicationInstance(IntPtr appContext, HttpContext context)
   at System.Web.Hosting.PipelineRuntime.InitializeApplication(IntPtr appContext)

The type initializer for 'Microsoft.Exchange.HttpProxy.HttpProxySettings' threw an exception.
   at Microsoft.Exchange.HttpProxy.ProxyApplication.ConfigureServicePointManager()
   at Microsoft.Exchange.HttpProxy.ProxyApplication.&lt;Application_Start&gt;b__0()
   at Microsoft.Exchange.Common.IL.ILUtil.DoTryFilterCatch(Action tryDelegate, Func`2 filterDelegate, Action`1 catchDelegate)
   at Microsoft.Exchange.HttpProxy.ProxyApplication.Application_Start(Object sender, EventArgs e)

Could not load type 'Microsoft.Exchange.VariantConfiguration.MachineSettingsContext' from assembly 'Microsoft.Exchange.VariantConfiguration.Core, Version=15.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35'.
   at Microsoft.Exchange.HttpProxy.HttpProxySettings..cctor()

</Data>
    <Data>https://localhost:443/ews/</Data>
    <Data>/ews/</Data>
    <Data>::1</Data>
    <Data>
    </Data>
    <Data>False</Data>
    <Data>
    </Data>
    <Data>NT AUTHORITY\SYSTEM</Data>
    <Data>59</Data>
    <Data>NT AUTHORITY\SYSTEM</Data>
    <Data>False</Data>
    <Data>   at System.Web.HttpApplicationFactory.EnsureAppStartCalledForIntegratedMode(HttpContext context, HttpApplication app)
   at System.Web.HttpApplication.RegisterEventSubscriptionsWithIIS(IntPtr appContext, HttpContext context, MethodInfo[] handlers)
   at System.Web.HttpApplication.InitSpecial(HttpApplicationState state, MethodInfo[] handlers, IntPtr appContext, HttpContext context)
   at System.Web.HttpApplicationFactory.GetSpecialApplicationInstance(IntPtr appContext, HttpContext context)
   at System.Web.Hosting.PipelineRuntime.InitializeApplication(IntPtr appContext)
</Data>
  </EventData>
</Event>
Log Name:      Application
Source:        MSExchange Front End HTTP Proxy
Date:          2017-05-03 12:09:43
Event ID:      1003
Task Category: Core
Level:         Error
Keywords:      Classic
User:          N/A
Computer:      exch01.int.contoso.com
Description:
[Ews] An internal server error occurred. The unhandled exception was: System.TypeInitializationException: The type initializer for 'Microsoft.Exchange.HttpProxy.HttpProxySettings' threw an exception. ---> System.TypeLoadException: Could not load type 'Microsoft.Exchange.VariantConfiguration.MachineSettingsContext' from assembly 'Microsoft.Exchange.VariantConfiguration.Core, Version=15.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35'.
   at Microsoft.Exchange.HttpProxy.HttpProxySettings..cctor()
   --- End of inner exception stack trace ---
   at Microsoft.Exchange.HttpProxy.ProxyApplication.ConfigureServicePointManager()
   at Microsoft.Exchange.HttpProxy.ProxyApplication.<Application_Start>b__0()
   at Microsoft.Exchange.Common.IL.ILUtil.DoTryFilterCatch(Action tryDelegate, Func`2 filterDelegate, Action`1 catchDelegate)
Event Xml:
<Event xmlns="http://schemas.microsoft.com/win/2004/08/events/event">
  <System>
    <Provider Name="MSExchange Front End HTTP Proxy" />
    <EventID Qualifiers="49152">1003</EventID>
    <Level>2</Level>
    <Task>1</Task>
    <Keywords>0x80000000000000</Keywords>
    <TimeCreated SystemTime="2017-05-03T10:09:43.000000000Z" />
    <EventRecordID>11496805</EventRecordID>
    <Channel>Application</Channel>
    <Computer>exch01.int.contoso.com</Computer>
    <Security />
  </System>
  <EventData>
    <Data>Ews</Data>
    <Data>System.TypeInitializationException: The type initializer for 'Microsoft.Exchange.HttpProxy.HttpProxySettings' threw an exception. ---&gt; System.TypeLoadException: Could not load type 'Microsoft.Exchange.VariantConfiguration.MachineSettingsContext' from assembly 'Microsoft.Exchange.VariantConfiguration.Core, Version=15.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35'.
   at Microsoft.Exchange.HttpProxy.HttpProxySettings..cctor()
   --- End of inner exception stack trace ---
   at Microsoft.Exchange.HttpProxy.ProxyApplication.ConfigureServicePointManager()
   at Microsoft.Exchange.HttpProxy.ProxyApplication.&lt;Application_Start&gt;b__0()
   at Microsoft.Exchange.Common.IL.ILUtil.DoTryFilterCatch(Action tryDelegate, Func`2 filterDelegate, Action`1 catchDelegate)</Data>
  </EventData>
</Event>

You already tried:

– Make sure the server is up to date with all Microsoft OS updates

– Rebooted it several times

– Disabled Antivirus & local OS firewall

Solution:

A solution which was working for me was the following:

1a.) On the affected Exchange 2016 CU5 server got to C:\Program Files\Microsoft\Exchange Server\V15\FrontEnd\HttpProxy and rename the file SharedWebConfig.config to SharedWebConfig.config_OLD

1b.) Copy the SharedWebConfig.config from a Exchange 2016 CU5 server which do not have the issues to that folder on the affected Server

2a.) On the affected Exchange 2016 CU5 server got to C:\Program Files\Microsoft\Exchange Server\V15\ClientAccess and rename the file SharedWebConfig.config to SharedWebConfig.config_OLD

2b.) Copy the SharedWebConfig.config from a Exchange 2016 CU5 server which do not have the issues to that folder on the affected Server

3.) Start a CMD (run as admin) and perform an iis reset (on the affected Server) via:

iisreset

Root cause:

The root cause from that issue seamed to be that there exists a Setup folder inside C:\Program Files\Microsoft\Exchange Server\V15\bin\. This is sometimes done to cover an error 1619, for a better solution for the error 1619 see here.

Previous article
Microsoft Exchange 2007 reached end of life today
Next article
From 0 to Raspberry Pi (start with Raspberry Pi)
Bastian
Bastian

Related Articles

LEAVE A REPLY

Please enter your comment!
Please enter your name here

Stay Connected

35FollowersFollow
- Advertisement -

Latest Articles

Load more

Newspaper is your news, entertainment, music fashion website. We provide you with the latest breaking news and videos straight from the entertainment industry. Fashion fades, only style remains the same. Fashion never stops. There are always projects, opportunities. Clothes mean nothing until someone lives in them.

Contact us: contact@yoursite.com

© Copyright - Admin Enclave
